Description

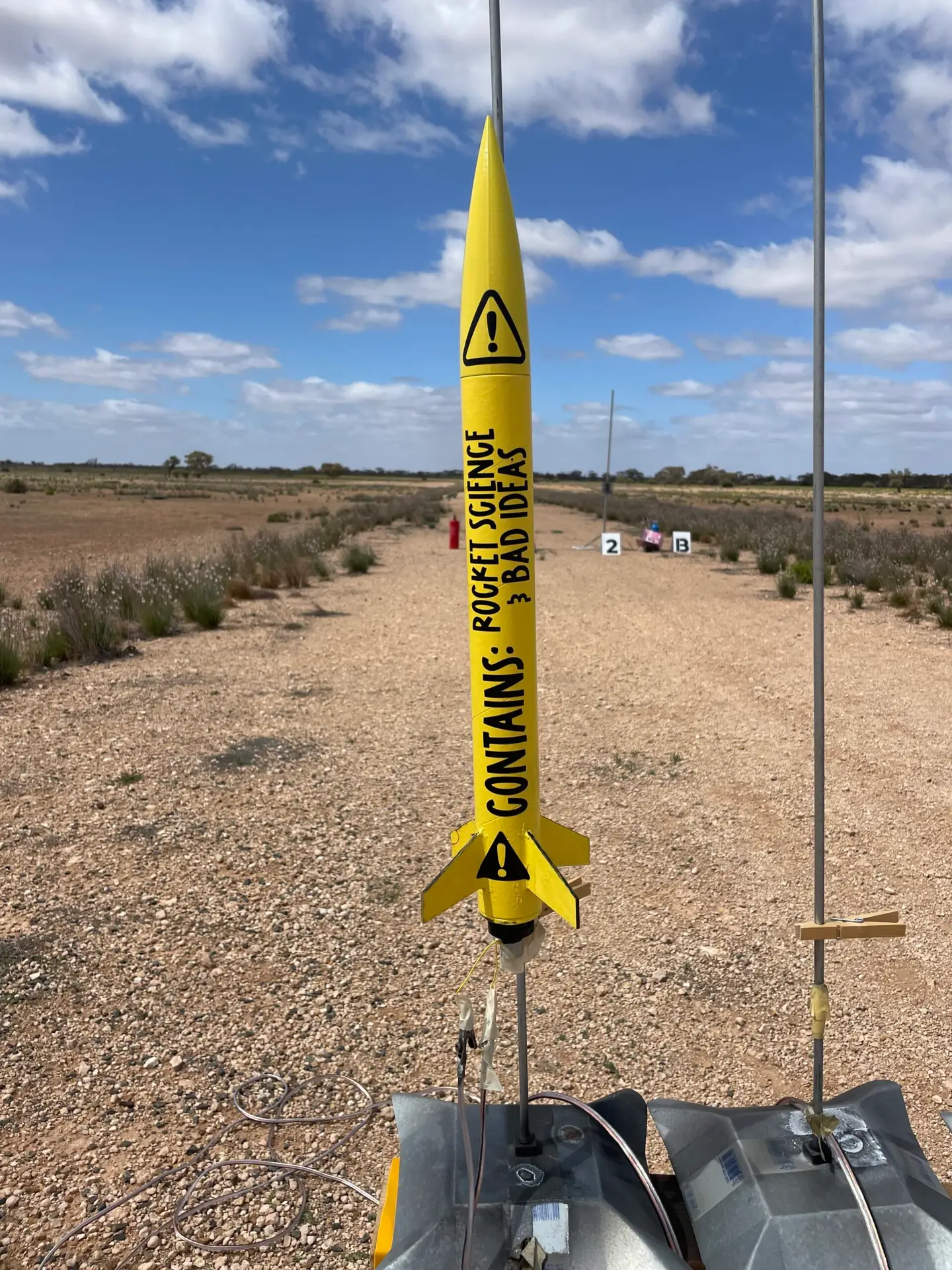

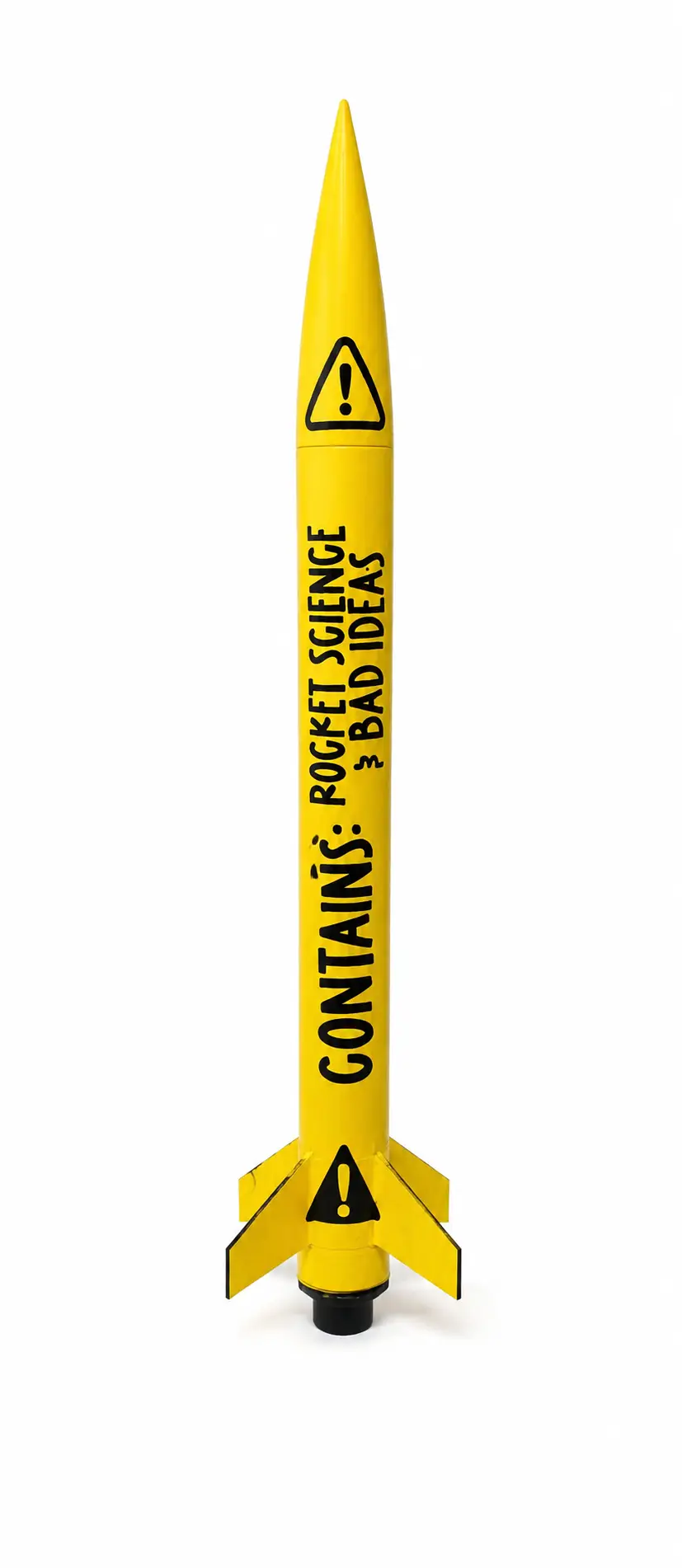

Don’t worry — the only thing explosive about this rocket is the excitement at launch. The Mildly Explosive is a fun-loving mid-power rocket built for energetic flights and plenty of laughs.
| Included | Recommended Extras |
Not Included
|
| Precision-Cut 41 × 350 mm Airframe Tube | Ripstop Nylon Recovery Parachute (18″) | Motor |
| Laser-Cut 3 mm Plywood Fin Set (4 Fins) | Nomex Recovery Blanket (6″) | Igniter |
|
Laser-Cut Internal Structure Set (Centring Rings + Thrust Plate)
|
Adhesives / Glue
|
|
|
3D Printed Ogive Nosecone
|
Paint | |
|
Kevlar Shock Cord (1.5 m, 750 lbf)
|
||
|
Launch Lugs (8 mm)
|
||
| Stickers |
Technical Specifications
| Specification | Value |
|---|---|
| Skill Level | Level B = Some hobby experience |
| Rocket Height | 503 mm |
| Diameter | 41 mm |
| Weight (Without Motor) | 206 g |
| Recovery | 18″ Parachute |
| Motor Mount | 29 mm |
| Recommended Motors | F32T-8, F44W-8, F67C-9, G40W-10, G74W-9, G78G-10 and more |
| Construction | Cardboard / Plywood / PLA |
| Finish Required | Paint + Vinyl |
| Assembly Time | 2–4 hours |
| Adhesives Needed | Epoxy / Wood Glue |
| Launch Guide | 8 mm Launch Lug |
| Electronics Bay | N/A |
| Max Simulated Altitude | ~2,894 ft |
OpenRocket Simulation
See how this rocket is expected to perform with different motor configurations by downloading the free OpenRocket design file.
The file can be opened using OpenRocket, a free rocket design and flight simulation program available for Windows, macOS and Linux.
What is an OpenRocket design file?
An OpenRocket design file contains a digital model of the rocket, including its dimensions, weight, body components, fin shape and recovery system.
The rocket has already been entered into the software, so you can open the file and begin testing different compatible motors without building the model from scratch.
OpenRocket can help you explore:
- estimated altitude and maximum speed;
- flight stability;
- acceleration and flight duration;
- deployment timing;
- descent rate;
- the effect of wind; and
- where the rocket may land.
It is a useful way to learn more about the rocket’s expected performance and compare motor options before building or launching.
Download the .ork file, open it in OpenRocket and start running your own flight simulations. Always confirm your final motor selection and launch conditions with an experienced rocketeer or launch official before flying.
